| Model | TX power | Max range | Doppler tech | Plotter network | Price |
|---|---|---|---|---|---|
| Garmin Fantom 18x | 50 W | 48 nm | MotionScope | Garmin only | ~$1,899 |
| Garmin Fantom 24x | 50 W | 72 nm | MotionScope | Garmin only | ~$2,499 |
| Lowrance HALO20+ | 25 W | 36 nm | VelocityTrack | Lowrance / Simrad / B&G | ~$1,199 |
| Raymarine Quantum 2 | 20 W | 24 nm | Doppler CHIRP | Raymarine Axiom | ~$1,799 |
| Furuno DRS4D-NXT | 25 W | 24 nm | Target Analyzer | Furuno NavNet | ~$2,549 |
Why solid-state killed magnetron
For sixty years, marine radar was a magnetron — a vacuum tube the size of a soup can that pulsed a few kilowatts of microwave energy out the antenna and listened for echoes. Magnetron radar worked, and it worked reliably, but it came with three problems that mattered increasingly on a small boat: a 15-to-90-second warm-up before you could see anything, a meaningful RF radiation hazard in the near field, and pulse durations long enough that two small targets close together blurred into one return.
Solid-state radar replaces the magnetron with a semiconductor transmitter — the same family of parts that drives a cell tower or a Starlink phased array. The transmitter pulses a shaped, chirped waveform instead of a brute-force burst, which gets you three things at once.
- Pulse compression. A long, frequency-modulated chirp gets processed back into a virtually short pulse at the receiver. That lets a 25W solid-state dome resolve targets as cleanly as a 4kW magnetron — at one-hundredth the peak power.
- Instant-on. No filament to warm up. Power on, wait three seconds, you have a picture. On a powerboat coming out of a fog bank, that three-second number matters.
- Doppler analysis. Because the chirped waveform has phase coherence, the receiver can measure frequency shift on every return — which means it can tell you which targets are moving, and which are stationary.
Power draw and RF exposure
A solid-state dome draws roughly half the average power of a comparable magnetron — typically 25-45W on a small-boat unit versus 50-90W for a 4kW magnetron. On a boat where every amp from the house bank matters, that's not nothing. Pair it with the math in our solar power for smart boats guide and you can keep radar on a guard zone all night without flattening the battery.
The RF safety argument is the one that doesn't get talked about enough. A 4kW magnetron emits radiation that exceeds OSHA recommended exposure limits within roughly 6 feet of the antenna. A 25W solid-state dome's exclusion zone is closer to 18 inches. If the radar lives on a hardtop with crew walking past it at deck level, that difference is real.
The magnetron holdout case
There is one case left for magnetron: open-array radar on commercial fishing boats and offshore sportfishers, where peak power of 4-25kW still finds birds at 6 miles for tuna fishing or weather fronts at 60 miles for offshore planning. For any small recreational boat — sailboat under 50 feet, trawler under 45 feet, center console under 40 feet — solid-state is the only category worth shopping in 2026.
Doppler, MARPA, and what they actually do
Doppler radar is the headline feature of every solid-state dome on the market, and the marketing copy makes it sound magical. What it actually does is this: every echo that returns to the radar gets analyzed for frequency shift. A target moving toward you returns a slightly higher-frequency echo than the transmitted pulse. A target moving away returns a slightly lower-frequency echo. A target that's stationary returns the same frequency. The radar processor uses that frequency shift to color-code targets on screen — typically red for inbound moving targets, green for outbound, and white or gray for stationary clutter.
Each brand has its own marketing name for this:
- Garmin calls it MotionScope.
- Lowrance, Simrad, and B&G call it VelocityTrack.
- Raymarine calls it Doppler CHIRP.
- Furuno calls it Target Analyzer — and theirs goes furthest, also flagging probable birds and probable debris.
They are all variations on the same underlying physics. They are not equally well implemented — Furuno's Target Analyzer is the most refined and the most aggressive about automatic filtering. But the headline effect is the same: a boat crossing your bow in fog at 10 knots gets a red icon you can't miss, even when it's surrounded by wave clutter that a non-Doppler radar would render as identical white blobs.
MARPA — still worth having
MARPA (Mini Automatic Radar Plotting Aid) is older technology: you tap a target on the screen, the chartplotter watches it across successive radar sweeps, and it tells you the target's course, speed, closest point of approach (CPA), and time to CPA. That's what you actually want to know when you're closing on a vessel at night — Doppler tells you something is moving, but MARPA tells you whether it's going to hit you in eight minutes.
All three of our top picks support MARPA, but only when the radar is paired with a chartplotter that has a real heading sensor wired into the NMEA 2000 backbone. Course-over-ground from GPS is not enough — heading needs to be accurate even when the boat is stationary at anchor or moving slowly through a current. Budget another $300-600 for a separate heading sensor if your autopilot doesn't already include one.
Three top picks, in detail
We compared specs, install patterns, and operator feedback across five current solid-state radar domes. The three below are the picks we'd actually recommend to friends; the other two (Garmin Fantom 24x and Raymarine Quantum 2) are excellent products that lost on either price-per-feature or compatibility breadth.

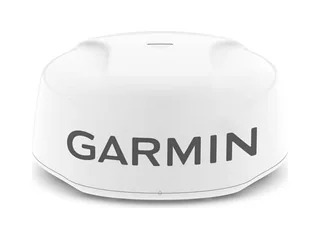

Garmin Fantom 18x — top pick for Garmin owners
The Fantom 18x is the most refined small-boat radar dome on the market, and the price reflects it. 50 watts of solid-state transmit power is more than any other dome in this class — paired with MotionScope Doppler analysis, the result is the cleanest, lowest-clutter radar picture we've seen anywhere outside a commercial wheelhouse. The Garmin Marine Network connection is essentially zero-config: plug the dome into a Garmin chartplotter's network port, the plotter recognizes it instantly, the radar overlay appears on the chart, and MARPA target tracking is one tap away. The Pause Sweep feature lets you freeze a single rotation on screen to study clutter in detail — genuinely useful in heavy weather. The catch is severe: the Fantom only talks to Garmin chartplotters. If your helm is anything else, this radar is invisible.
Strengths
- 50W transmit power — highest in the small-boat category
- MotionScope Doppler — automatic moving-target highlighting
- 48nm maximum range with excellent short-range performance
- Zero-config integration with any modern Garmin chartplotter
- Pause Sweep mode — freeze a radar rotation to analyze targets
- Garmin's update cadence has steadily added features since launch
Trade-offs
- Garmin chartplotter required — no cross-brand option
- ~$1,899 is the highest 18-inch dome price in the segment
- Heavier than the HALO20+ by roughly 4 lbs — mast windage matters
- Garmin Marine Network is proprietary — not standard Ethernet

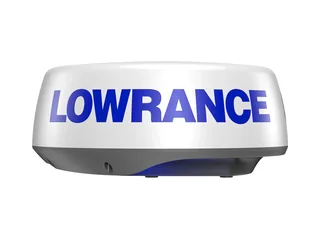

Lowrance HALO20+ — best value, broadest compatibility
The HALO20+ is the small-boat radar we'd recommend to the largest number of people, for two practical reasons: it costs nearly $700 less than the Fantom, and it works with three brands of chartplotter instead of one. Because Lowrance, Simrad, and B&G all share the Navico Ethernet backbone, the HALO20+ slots into a Lowrance HDS Live, a Simrad NSS evo3S, or a B&G Zeus3S without any per-plotter compatibility dance. VelocityTrack Doppler analysis is genuinely effective — moving targets get a red or green color overlay automatically — and dual-range operation lets you watch a 1-mile zoom for collision avoidance and a 12-mile overview simultaneously. The trade-off vs the Fantom: 25W transmit power instead of 50W, which on paper halves the range but in practice means lower-confidence returns on small targets at the outer 10-15 miles. For a small boat where the useful range is 6-8 miles anyway, that's a trade most owners won't notice.
Strengths
- Three-brand compatibility — Lowrance, Simrad, B&G
- VelocityTrack Doppler — automatic moving-target color overlay
- Dual-range mode — short and long range simultaneously
- NMEA 2000 + Ethernet — standard cabling, easy install
- Roughly $700 less than the Garmin Fantom 18x
- Lighter and lower-profile dome than the Fantom
Trade-offs
- 25W transmit — half the Fantom's power, weaker at the outer 10-15 miles
- Won't work with Garmin, Raymarine, or Furuno chartplotters
- Older HDS Carbon plotters need a software update for Doppler support
- Doppler color overlay is less refined than Furuno's Target Analyzer
Furuno DRS4D-NXT — premium pick for serious cruisers
The DRS4D-NXT is the most expensive radar in this comparison and, in most ways that matter to a serious cruiser, the best. Furuno's Target Analyzer is more refined than any other Doppler implementation we've evaluated — it doesn't just flag moving targets, it makes a probabilistic guess about what they are and color-codes accordingly. Birds get one color, debris gets another, vessels get a third. RezBoost is Furuno's beamwidth-sharpening processing that produces noticeably tighter target separation than the dome's physical antenna ought to allow. Fast Target Tracking automatically acquires and tracks targets without manual MARPA setup. The 24-nautical-mile maximum range looks unimpressive on paper next to the Fantom's 48nm, but Furuno's short-range performance — where the radar is actually useful on a small boat — is the best in the comparison. The constraint, like Garmin's, is brand lock-in: the DRS4D-NXT only talks to Furuno NavNet chartplotters.
Strengths
- Target Analyzer auto-classification — vessels, birds, debris separately colored
- RezBoost beamwidth sharpening — tighter target separation than physics suggests
- Fast Target Tracking — automatic MARPA-equivalent without manual tagging
- Best short-range performance — where a small-boat radar lives
- Furuno reliability and long-term support reputation
- Built-in heading sensor option simplifies install
Trade-offs
- Most expensive option here — ~$2,549 vs $1,199 for the HALO20+
- Furuno NavNet chartplotter required — narrowest brand compatibility
- 24nm maximum range — lowest in the comparison, though academic on a small boat
- Furuno dealer network is smaller than Garmin or Navico
Two more we considered
The Garmin Fantom 24x (check price) is the same dome architecture as the Fantom 18x but with a larger antenna — 72nm maximum range and meaningfully tighter beamwidth, which translates to better long-range target separation. For a sportfisher or trawler with the hardtop space and the budget, it's the right answer. We didn't list it as a top pick because the 18x's range is already more than a small boat needs and the price difference is roughly $600.
The Raymarine Quantum 2 Doppler (check price) is a solid product — Doppler CHIRP processing, integration with the Raymarine Axiom plotter family, and a remarkable 4.4 lb dome that mounts almost anywhere. If your helm is already Raymarine, this is the only radar to buy. We didn't list it as a top pick because at $1,799 the value proposition vs the HALO20+ is hard to justify unless you're already in the Axiom ecosystem.
The chartplotter compatibility trap
Radar is the deepest brand lock-in product on a small boat. Every other piece of marine electronics — chartplotters, AIS, depth transducers, autopilots — has at least some cross-brand path through NMEA 2000. Radar doesn't. The high-bandwidth video stream from the dome to the plotter runs over a proprietary Ethernet variant that each manufacturer keeps walled off.
This is the single most important thing to understand before spending $1,200-$2,500 on a radar: you don't get to mix and match. The radar you buy is determined by the chartplotter brand at your helm, full stop.
Garmin Marine Network
Garmin Fantom domes connect to Garmin chartplotters (GPSMAP 7x2, 9x2, 12x2 Plus series and newer) over Garmin Marine Network — Garmin's proprietary fiber-Ethernet variant. The dome ships with the network cable. The plotter has dedicated Garmin Marine Network ports. There is no published API, no cross-brand bridge, no clever workaround. You either own a Garmin plotter, or you don't.
Navico Ethernet (Lowrance / Simrad / B&G)
The HALO20+ and other Navico radars use a shared Ethernet backbone across three sister brands. A HALO20+ works identically on a Lowrance HDS Live, a Simrad NSS evo3S, or a B&G Zeus3S — all three plotters are essentially the same hardware with different paint and chart libraries. This is the broadest cross-brand compatibility in the category and one of the main reasons we rate the HALO20+ as the best-value pick.
Raymarine RayNet / SeaTalkNG
Raymarine Quantum 2 domes connect to Raymarine Axiom chartplotters over RayNet — Raymarine's Ethernet variant. SeaTalkNG (Raymarine's NMEA 2000 implementation) handles auxiliary data like heading and GPS. Like Garmin, the system only works within Raymarine's ecosystem.
Furuno NavNet TZtouch
Furuno DRS-series domes connect to NavNet TZtouch 2 and TZtouch 3 multifunction displays over Furuno's NavNet Ethernet network. Older NavNet vx2 plotters need a network upgrade kit. Brand lock-in is total — Furuno radar to Furuno plotter, nothing else.
Pick the chartplotter first, the radar second. The radar choice is meaningfully constrained once you've committed to a plotter brand. If you want the cheapest path into solid-state Doppler radar in 2026, pair a Lowrance HDS Live 9 (around $1,300) with a HALO20+ ($1,199) — about $2,500 total for a complete plotter + Doppler radar install.
Mounting, windage, and the mast-vs-arch debate
Radar is line-of-sight. The higher you mount the dome, the farther it sees — but height also adds windage, increases the moment arm on the mast or arch, and complicates the cable run. Every install is a trade-off between detection range and mechanical reality.
Sailboat masthead and mid-mast
The classic sailboat install is a dedicated radar bracket roughly two-thirds of the way up the mast — high enough to clear the boom and most of the sail, low enough that you can still reach it for service. A typical 30-foot mast install puts the dome at roughly 20 feet above the waterline, which gives 8-10 nautical miles of useful return on small targets and 15-20 nautical miles on large ships.
The trade-off is windage. A Garmin Fantom 18x weighs about 16 lbs; the lighter HALO20+ is closer to 12 lbs. Either is fine on a stout aluminum mast, but the windage load is real — the dome catches wind from every direction and adds drag aloft that the rig has to handle. The radar mast mount (check price) is the part nobody budgets for that you absolutely need.
Powerboat hardtop or arch
On a powerboat, the cleanest install is a hardtop or a stainless arch behind the helm. Hardtop mounts are typically 8-12 feet above the waterline, which limits useful range on small targets to 5-7 nautical miles — perfectly adequate for harbor work and inshore cruising but limiting for offshore passages. An arch mount pushes the dome to 12-15 feet and adds 2-3 miles of detection range.
Cable runs and the right kit
The cable from the dome to the chartplotter is the most failure-prone part of a radar install. It carries 12V power and high-bandwidth data, has to make a tight bend at the dome entry, and runs through bulkheads where moisture finds every gap. The radar cable kit (check price) — strain relief, deck gland, anti-chafe sleeve, and dielectric grease — is mandatory, not optional. Cheap out on this and you're chasing intermittent radar failures for the life of the install.
Power, fusing, and NMEA 2000 integration
A solid-state radar dome draws 25-45W in operation — about 2-4 amps at 12V. That sounds like nothing until you remember it's running anytime the radar is on, and a guard-zone alarm at anchor needs the radar awake 24/7. For broader thinking on always-on power budgeting, our cellular boat monitoring guide walks through 24/7 power-budget math.
Wiring and fusing
Use 12 AWG minimum on the dome's 12V feed; 10 AWG is better on runs over 20 feet to keep voltage drop under 3%. Fuse the circuit at 10A — twice the expected draw, to handle the inrush current when the dome powers up. The breaker or fuse should be on the dome's panel, not buried in the engine room or behind the helm where a fault is hard to reach.
NMEA 2000 — heading sensor required
Radar overlay on a chartplotter chart needs an accurate, real-time heading reference. GPS course-over-ground is not enough — at anchor or low speed, COG is meaningless. You need a dedicated heading sensor on the NMEA 2000 backbone, feeding heading data at 10Hz or faster. Most autopilots include a fluxgate or solid-state compass that publishes heading to NMEA 2000; if you don't have an autopilot, a separate Garmin SteadyCast or Airmar H2183 sensor adds another $300-600 to the install.
If you're new to NMEA 2000 backbones, our NMEA 2000 gateway primer walks through the basics. A solid-state radar install is a good moment to audit the backbone — make sure terminators are in place at both ends, the LEN budget isn't exceeded, and you have a free T-piece for the heading sensor.
VSWR is not the right check — but cable integrity is
Unlike VHF and AIS installs where VSWR matters, a radar dome's antenna is integrated and not user-serviceable. What matters here is the data cable. After install, the radar configuration utility on the chartplotter will report return signal strength and noise floor — values within the manufacturer's published normal range mean the install is good. Anything significantly outside that range usually points to a damaged cable, a poorly-seated connector, or a ground loop between the dome and the plotter.
Even at 25W, a solid-state radar dome should not transmit while crew are within roughly 18 inches of the antenna. Most plotters have a Standby mode that powers the dome but stops the rotation and transmit — use it whenever someone's working on the hardtop, mast, or in the rigging near the dome. The RF exposure dose at close range builds up faster than most boaters appreciate.
Who should buy what
Radar buying is unusually deterministic — the chartplotter at your helm dictates most of the decision. The remaining choice is feature set and budget.
Frequently asked questions
What is the difference between solid-state and magnetron radar?
Magnetron radar is the old technology — a vacuum tube that pulses high-power microwave bursts and requires 15-90 seconds of warm-up. Solid-state radar uses semiconductor transmitters, draws roughly half the power, requires no warm-up, and emits significantly less RF energy in the near field. It also enables Doppler target separation, which magnetron units cannot do. For any small boat in 2026, solid-state is the only category worth shopping.
What does Doppler radar actually do for a small boat?
Doppler radar measures the frequency shift of returning echoes to determine whether a target is moving toward you, away from you, or stationary. Garmin calls this MotionScope, Lowrance and Simrad call it VelocityTrack, Furuno calls it Target Analyzer. The practical benefit: moving targets are automatically colored differently from stationary clutter (buoys, rocks, waves, rain), so a boat crossing your path through choppy water or fog is visible instantly rather than buried in the clutter pattern.
Can I use a Lowrance radar with my Garmin chartplotter?
No. Radar is the deepest brand-lock-in product on a small boat. Garmin Fantom domes only talk to Garmin chartplotters over the proprietary Garmin Marine Network. Lowrance HALO domes only talk to Lowrance, Simrad, or B&G chartplotters over their Ethernet network. Raymarine Quantum 2 only talks to Raymarine Axiom plotters. Furuno NavNet domes only talk to Furuno plotters. Buy the radar that matches whatever brand is already at your helm — or be prepared to replace the plotter as well.
How much radar range do I actually need on a small boat?
Maximum advertised range (24, 48, or 72 nautical miles) is almost entirely marketing for a small boat. Radar is line-of-sight, so the curvature of the Earth limits a dome mounted 15 feet above the waterline to roughly 6-8 nautical miles of useful return on small targets — taller mast or hardtop mounts push that to 10-12 miles. The numbers you should actually care about are short-range performance (under 1/8 mile, for collision avoidance in fog) and target separation at 1-3 miles, where small boats live. Both are functions of beamwidth and pulse-compression bandwidth, not maximum range.
Is MARPA still useful if I have Doppler radar?
Yes, the two complement each other. MARPA lets you manually tag a specific target and the chartplotter calculates its course, speed, CPA, and time to CPA — useful for picking out a particular vessel ahead of time. Doppler highlights every moving target automatically without you having to tag it. In practice you use Doppler for situational awareness across the whole radar picture and MARPA for the one ship you want to track precisely. All three of our picks support MARPA when paired with the right chartplotter and a heading sensor.
Do I need a separate heading sensor for radar?
For chart overlay and MARPA, yes — radar needs a real-time heading reference accurate to better than two degrees, which a standard GPS course-over-ground value cannot provide at low speed or at anchor. A NMEA 2000 heading sensor (or an autopilot with one built in) is required. Without it, your radar still shows a head-up display, but you can't overlay it on the chart and MARPA target tracking becomes inaccurate. Budget another $300-600 for a separate heading sensor if you don't already have an autopilot.
The short version, by profile
Garmin chartplotter at the helm: Garmin Fantom 18x. Highest transmit power in the segment, MotionScope Doppler, zero-config integration. If you have a sportfisher with hardtop space and a longer-range need, step up to the Fantom 24x for 72nm range. Either way, you don't have a meaningful cross-brand alternative.
Lowrance, Simrad, or B&G chartplotter (or starting from scratch on a budget): Lowrance HALO20+. Best value in the category — VelocityTrack Doppler, dual-range operation, $700 less than the Fantom. The HALO20+ works identically on all three Navico-family plotters, which is the broadest compatibility you can get with marine radar. Pair with a fresh HDS Live 9 for the cheapest path into modern solid-state Doppler.
Serious cruiser with Furuno plotter (or buying once, buying right): Furuno DRS4D-NXT. Target Analyzer's auto-classification (vessels vs birds vs debris) is more sophisticated than any other Doppler implementation on the market, RezBoost beamwidth sharpening delivers exceptional short-range target separation, and Furuno's reliability reputation is the industry benchmark. The most expensive pick, but the one that justifies its price for offshore cruisers who'll keep the radar running 24/7.
Raymarine Axiom owner: Raymarine Quantum 2 Doppler is your only real choice. It's a good radar — light, Doppler-equipped, well-integrated with the Axiom ecosystem — just not a best-in-class one. If you're starting from scratch and not committed to Raymarine, the HALO20+ is a better value.
The general rule: for any small boat in 2026, solid-state Doppler is the only category worth shopping. Don't buy a magnetron radar new. And don't fight the brand lock-in — pick the radar that matches your plotter, install it with a proper cable kit and a heading sensor, and the system will outlast everything else at the helm.
