Solar power for smart boats.

The smart boat power budget

Before you buy a single panel, you need to know what you're actually powering. This is the step most solar-for-boats articles skip — they jump straight to panel specs and wattage comparisons without ever asking what the panels are supposed to run. For a smart boat, that question has a very specific answer.

Here's what common smart boat systems actually draw, measured at the 12V DC bus (see our Starlink for boats guide for hardware selection):

The numbers that matter are in the right column. A watt-hour (Wh) is one watt consumed for one hour — it's how you translate instantaneous draw into a daily energy budget. Add up the systems you're running, and you have your daily target.

To make this concrete, here are three real-world profiles:

Profile 1: The Watch Keeper

Mooring-field boat. Siren 3 hub + bilge monitor + battery monitor. Everything runs 24/7 on low draw. Daily budget: ~50–80 Wh. This is the easiest solar problem to solve — a single 30–50W panel handles it comfortably.

Profile 2: The Connected Cruiser

Weekend cruiser or seasonal liveaboard. Starlink Mini for 8 hours/day + Siren hub + cellular router + a camera. Daily budget: ~350–550 Wh. This is the sweet spot where solar stops being a nice-to-have and becomes the difference between running a generator and not.

Profile 3: The Full Stack

Liveaboard or extended cruiser. Starlink Standard running most of the day + Home Assistant on a Pi + multiple cameras + monitoring hub + NMEA 2000 gateway + LED lighting. Daily budget: ~700–1,000 Wh. This requires a serious solar installation and a proper battery bank — but it's entirely doable.

If you've already read our cellular monitoring guide or the Home Assistant build guide, you know exactly which systems you're running. Add them up from the table above, and that's your number.

Solar 101 for boat owners

What "100W" actually means

A panel rated at 100 watts produces 100W under lab conditions: direct sun at peak intensity, panel temperature of 25°C, zero shading. On a boat, you'll never hit that number. Between angle losses (the panel is horizontal, the sun isn't), partial shading from rigging and hardware, heat derating (marine panels run hot), and cloud cover, expect 60–80% of rated power in real conditions. A "100W" panel on a boat typically produces 60–80W during peak sun hours.

Peak sun hours vary by latitude and season. In Florida, you might get 5–6 peak sun hours daily in summer. In the Pacific Northwest, you're looking at 3–4 in summer, less in winter. For sizing purposes, multiply your panel's realistic output by your location's peak sun hours, and that's your daily harvest. A 100W panel producing 70W for 5 hours yields 350 Wh — enough for a Connected Cruiser with a bit of margin.

Rigid vs. flexible vs. portable

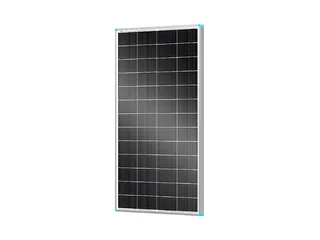

Rigid panels with aluminum frames and tempered glass are the marine standard. They're heavier (a 100W panel is typically 15–20 lbs), require permanent mounting, and take up committed deck or hardtop space. But they last 20+ years in marine conditions, resist salt spray and UV degradation, and hold their rated output better over time. If you have a hardtop, arch, or radar mast, rigid panels are the right answer.

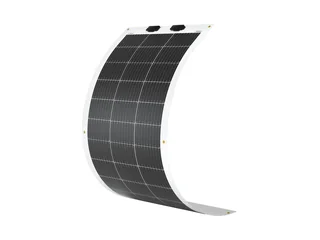

Flexible panels can curve to match a bimini or cabin top (typically up to 30° of bend). They're lighter (6–8 lbs for 100W), easier to install, and fit where rigid panels can't. The trade-off is lifespan — flexible panels degrade faster, typically lasting 5–10 years compared to 20+ for rigid. They're also more vulnerable to salt and UV. If your only mounting surface is a canvas bimini or curved cabin top, flexible is the way to go; just plan on replacing them.

Portable panels fold up and stow when not in use. They make sense for dinghy-sailors, trailer boats, and anyone who doesn't want a permanent installation. The downside is obvious: you have to set them up each time, and they're not producing power when stowed.

Marine-grade matters

The cheapest 100W panel on Amazon was designed for a suburban rooftop. It will corrode in a marine environment within two seasons. Marine-grade panels use anodized aluminum frames, sealed junction boxes with potted (silicone-filled) connectors, bypass diodes to handle the partial shading that's constant on boats, and IP67 or IP68 waterproof ratings. The price premium over residential panels is 20–40% — and it's worth every dollar when you're in a salt-spray environment.

The charge controller: why MPPT matters

A charge controller sits between your solar panels and your battery bank. Its job is to regulate voltage and current so the battery charges safely and efficiently. There are two types, and the distinction matters far more than most panel comparisons.

PWM (Pulse Width Modulation) controllers are simple and cheap ($15–$30). They basically connect the panel directly to the battery and pulse the connection on and off to regulate voltage. They work, but they waste any panel voltage above what the battery needs. If your 100W panel produces 18V and your battery wants 14V, those extra 4 volts are lost as heat.

MPPT (Maximum Power Point Tracking) controllers are smarter and more expensive ($65–$200). They continuously track the panel's optimal voltage/current ratio and convert excess voltage into additional charging current. In practice, this means 25–40% more energy harvested from the same panel compared to PWM. On a boat, where your panels are perpetually fighting shading and suboptimal angles, that 25–40% is the difference between a system that barely keeps up and one that works.

For a Watch Keeper profile running a single 30W panel, a cheap PWM controller is fine — the math doesn't justify the MPPT premium. For anything above 100W or any system where you're trying to power connectivity gear, MPPT is non-negotiable.

The specific controller to buy

The Victron SmartSolar MPPT 75/15 is the standard in marine solar for good reason. It handles up to 220W of panels on a 12V system, tracks maximum power point in milliseconds (critical when clouds are moving), and includes built-in Bluetooth for setup and monitoring through the VictronConnect app. It's IP67 rated, compact enough to mount in a small locker, and integrates with Victron's broader ecosystem if you ever add a battery monitor or inverter.

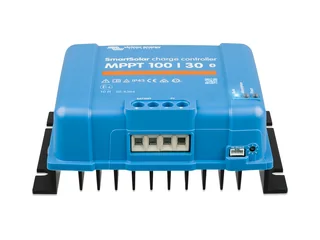

For Full Stack builds above 400W, step up to the Victron SmartSolar MPPT 100/30, which handles up to 440W on 12V and 30A of charge current. Same app, same quality, bigger capacity.

For the full breakdown — how to size an MPPT by its PV/output numbers, how the controllers get their data onto Signal K and NMEA 2000, and where the Renogy Rover fits as a budget pick — see our dedicated best MPPT solar charge controller guide.

Both controllers talk to Home Assistant via Bluetooth or VE.Direct — which means your solar harvest becomes another data feed in your smart boat dashboard. More on that in the monitoring section.

Battery considerations for electronics

This isn't a complete battery guide — that's a topic that deserves its own treatment. But solar and batteries are inseparable, and there's one critical point that matters specifically for smart boat systems.

Why LiFePO4 is right for electronics

Lead-acid batteries (AGM, gel, flooded) have a voltage curve that drops progressively as they discharge. A "fully charged" lead-acid battery reads 12.7V; at 50% capacity it reads 12.2V; at 12.0V it's effectively empty and should not be discharged further. That voltage drop matters because electronics are voltage-sensitive. A Siren 3 hub, a Starlink Mini, and especially a VHF radio all need stable voltage to function correctly. A VHF radio below about 12.3V can receive but can barely transmit — exactly the moment you'd most need it.

LiFePO4 (lithium iron phosphate) batteries maintain a nearly flat voltage curve from 100% to 20% capacity — typically holding between 13.2V and 13.0V across 80% of the discharge range. For electronics, this means stable operation across the entire usable capacity of the bank. LiFePO4 also tolerates 80–90% depth of discharge (vs. 50% for lead-acid), which means a 100Ah LiFePO4 battery gives you 80–90Ah of usable capacity versus 50Ah from a 100Ah AGM. You buy half the capacity for the same usable energy.

The downside is cost: a 100Ah LiFePO4 battery runs $300–$500 versus $150–$200 for a comparable AGM. But when you factor in the deeper usable capacity, longer cycle life (2,000–5,000 cycles vs. 300–500), and better performance with electronics, the per-cycle cost is actually lower.

Three complete solar kits, sized by profile

Here are three complete builds, matched to the profiles from Section 1. Every component is available on Amazon through our affiliate links, and every kit has been spec'd to work together without compatibility issues.

The featured gear, in detail

Installation basics

Mounting options

Hardtop or arch: The best location. No shading from rigging, panels face the sky, permanent installation. Use stainless steel Z-brackets or rail-mount hardware. Pre-drill with a step bit into the hardtop, apply marine sealant (Butyl tape or 3M 4200), and bolt down.

Bimini: Common on sailboats. Use flexible panels attached with industrial-strength adhesive (3M VHB tape or Sikaflex 252) or lashed through grommets. Be aware that bimini fabric moves and flexes — adhesive-only mounting can eventually detach in high winds. Lacing through grommets is more durable.

Deck rail: Portable or semi-permanent option. Rail-mount brackets let you tilt panels for better sun angle. Good for smaller panels (30–100W) where you want the option to remove them. Poor for larger panels — the rail can't support the weight and wind load.

Wiring essentials

Three rules for marine solar wiring that you should not skip:

• Use marine-grade tinned copper wire. Untinned wire corrodes at the strand level in a marine environment — you'll have a wire that looks fine on the outside and has 40% of its conductivity left on the inside. Tinned wire costs more and is worth it. 10 AWG handles runs up to 200W over 20 feet; step to 8 AWG for longer runs or higher wattages.
• Use adhesive-lined heat-shrink connectors. Not crimp-only, not electrical tape. Heat-shrink with internal adhesive creates a waterproof seal when heated. Every connection on your boat will see moisture.
• Install a drip loop at every point where a wire enters an enclosure. A drip loop is a U-shaped dip in the wire before it enters the box, so water runs to the bottom of the U and drips off instead of following the wire into the electronics.

Fusing

Install an inline fuse on the positive wire between the charge controller and the battery bank. Size the fuse to the controller's maximum charge current plus a 25% safety margin. For a Victron 75/15 (15A max), use a 20A fuse. For the 100/30 (30A max), use a 40A fuse. Use marine-grade ANL or ATC fuse holders rated for 12V DC — automotive fuses are fine electrically, but the holders may not be corrosion-resistant.

Monitoring your solar — closing the loop

This is the section that makes this a smart boat solar guide and not just a solar guide. If you've built a monitoring stack — a Siren hub, a Home Assistant Pi, a Signal K server — you can and should make your solar system itself a data source.

Victron's built-in monitoring

Every SmartSolar MPPT controller includes Bluetooth that talks to the VictronConnect app. From your phone, you can see real-time panel voltage, charge current, daily yield (Wh), battery voltage, charge state, and a 30-day history. This alone tells you whether your system is producing what it should, whether your battery is getting full charges, and whether a panel might be failing or partially shaded.

Remote monitoring via VRM

If you add a Victron GX device (or a Raspberry Pi running Venus OS), your solar data uploads to Victron's free VRM portal. You get the same data from anywhere with an internet connection — which, if you've followed our marine internet stack guide, you have. This means you can check your boat's solar harvest and battery voltage from your desk, your phone, or any browser.

Home Assistant integration

If you've built the Home Assistant marine setup from our guide, the Victron BLE integration lets Home Assistant read your charge controller data directly over Bluetooth. Solar yield, battery voltage, charge state, and panel power all become HA entities that you can put on dashboards, set automations against, and include in your alert logic. Imagine an automation that says "if solar yield was below 100 Wh today AND battery voltage is below 12.8V, send me a push notification" — that's a two-minute HA automation that tells you your panels need cleaning or the boat's been parked under a tree.

The closed loop looks like this: solar panels → Victron MPPT → battery bank → powers your monitoring hub → monitoring hub reads the MPPT via Bluetooth → you see everything remotely. Every layer powers the next, and every layer reports to the same dashboard. That's the smart boat solar stack.

When we'd update this guide

We'll revisit this guide when:

• A mainstream panel manufacturer ships a marine-specific flexible panel with a warranty longer than 10 years — currently the biggest gap in the category
• Starlink Mini's power consumption drops significantly (rumored for future hardware revisions) — this would shrink Kit 2's solar requirement meaningfully
• Victron or a competitor ships an MPPT controller with built-in Wi-Fi (not just Bluetooth) — would simplify Home Assistant integration
• LiFePO4 prices drop below $2/Ah at the consumer level — currently around $3–$5/Ah, with prices falling steadily
• A new panel technology (like HJT or tandem cells) becomes available at marine-grade quality — would increase harvest from the same footprint
